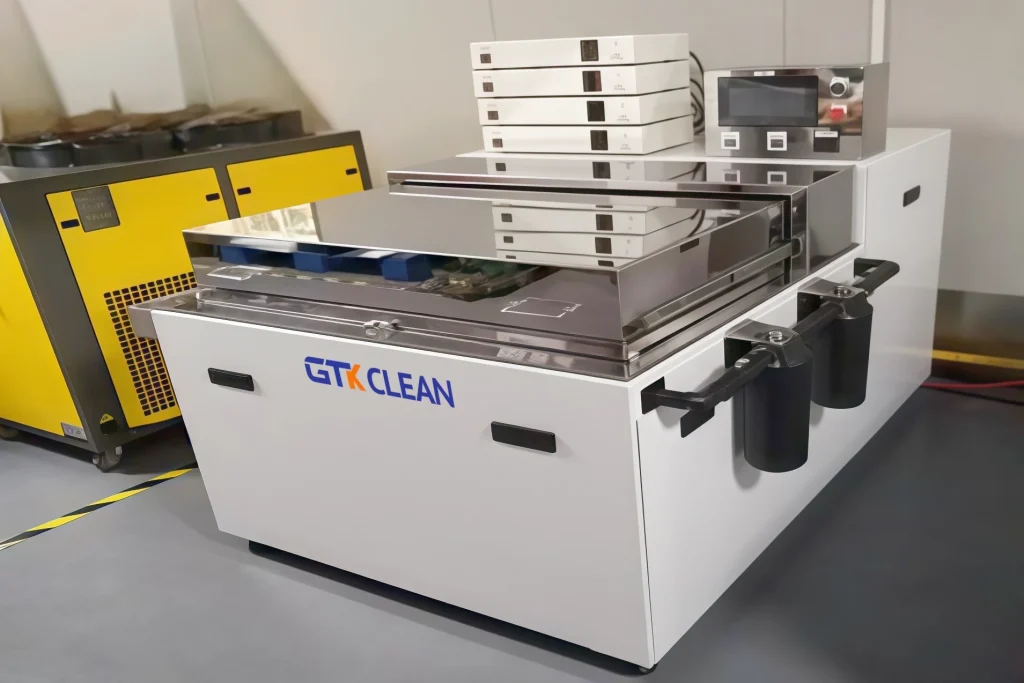

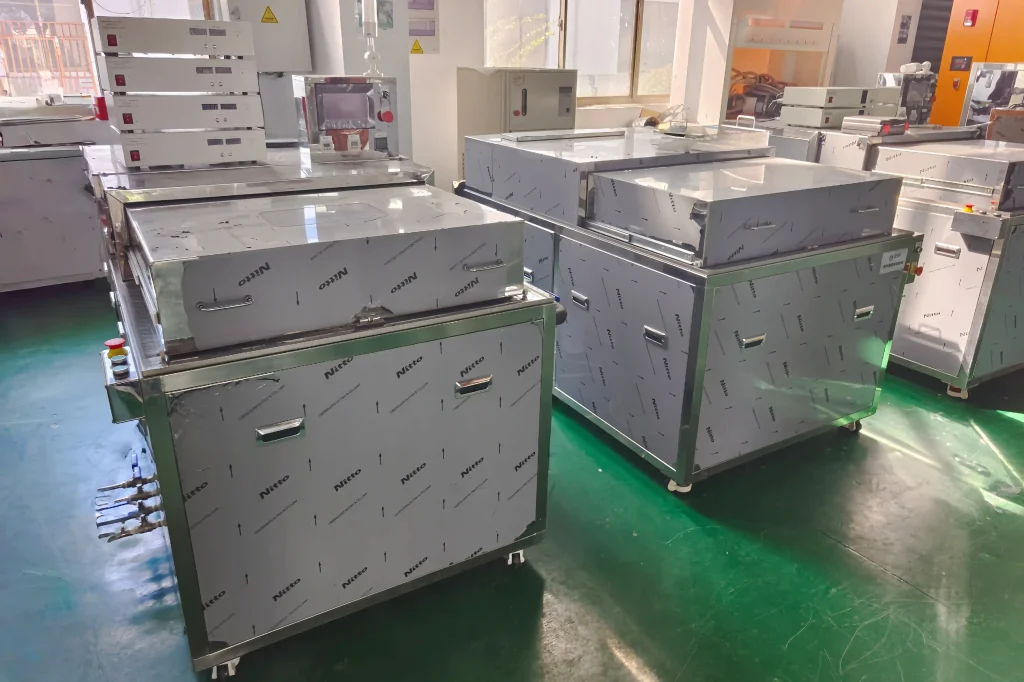

Precision Ultrasonic Deburring & Industrial Cleaning Systems

Suitable for components made of various materials such as metals and plastics, this ultrasonic washer is engineered by GTK’s R&D team specifically for deburring intricate internal cavities and blind holes of complex-structured parts.

Tailored to the precise deburring needs of industrial components, GTK’s engineered design features the following core advantages:

  • Adopting a proprietary multi-frequency ultrasonic technology that generates full-tank coverage ultrasonic waves simultaneously, enabling high-efficiency burrs removal from component surfaces;
  • Integrating a special enhanced cavitation implosion technology that drastically boosts the cleaning power of ultrasonic waves, delivering 10x higher intensity than conventional ultrasonic cleaning systems;
  • Utilizing tap water or pure water as the cleaning medium, which can be directly discharged after use—realizing eco-friendly and pollution-free cleaning;
  • Custom-engineered ultrasonic vibration plates ensure a service life of over 2000 hours even under high-intensity operation;
  • Removes all types of micro-burrs without altering product dimensions or causing any damage to workpieces.

Equipment Specifications

ItemSpecification
Overall DimensionsL1680mm (Length) × W1200mm (Width) × H1500mm (Height)
Cleaning Basket DimensionsL500mm (Length) × W500mm (Width) × H100mm (Height)
Cleaning Cycle5–10 min
Installed Power12 kW (including chiller)
Single Water Filling Capacity120 L
Pure Water Consumption≤ 1200 L/month
Single Loading Capacity≤ 10 kg

For more details, please contact us – any size can be custom-manufactured with no additional design charge.
