Ultrasonic Vacuum Cleaning for High Cleanliness Parts

Ultrasonic vacuum cleaning changes what is possible for parts with blind holes, micro bores, and tight cleanliness specifications. Standard ultrasonic systems struggle when air pockets shield internal surfaces from cavitation and when residual moisture dries into spots or films. By drawing the chamber below atmospheric pressure, vacuum ultrasonic cleaning removes trapped air, improves solvent penetration, and shifts drying from evaporation to low-temperature boiling. Manufacturers facing coating adhesion failures, particle contamination limits, or solvent residue rejects on precision components should evaluate vacuum systems before adding more tanks or chemical strength. The decisive factor is rarely ultrasonic power alone. It is what happens between cavitation and dry part.

Vacuum Ultrasonic Cleaning Changes the Cleanliness Limit

Standard ultrasonic cleaning depends on cavitation bubbles collapsing against a surface. That mechanism works well on exposed external features. It loses effectiveness inside blind holes, narrow recesses, and capillary gaps where air or vapor remains trapped. Air is compressible, so bubble energy dissipates before the liquid reaches the contaminated surface. In those geometries, a conventional multi-tank line can deliver consistent rinsing and still leave particle residues or oil films inside the hole.

Vacuum changes the boundary condition. When the chamber pressure drops, air expands and leaves the liquid and the part cavities. The cleaning medium can then enter recesses that atmospheric pressure could not flood. Ultrasonic energy acts on a liquid-filled space instead of an air pocket. For precision hydraulic components, medical instrument bodies, fuel system parts, and PVD coating candidates, this is often the difference between a passing particle count and a hidden reject.

In our project reviews, when blind holes exceed roughly five times diameter, we treat vacuum assistance as a process requirement. The problem shows up later in surface energy testing or coating adhesion checks, not always in the cleaning tank. For parts with only exposed surfaces and wide tolerance, standard multi-stage ultrasonic remains the lower-cost route because vacuum chambers add cycle time and capital cost.

Sealed-Chamber Vacuum Processing Removes Air Blockage

The process is not a single vacuum pull. A well-designed vacuum ultrasonic system sequences the following steps:

1. The basket is loaded and the chamber is sealed.
2. Rough vacuum removes air from the chamber, the liquid, and deep part features.
3. Degassed cleaning medium enters the chamber and floods the cavities.
4. Ultrasonic cavitation runs in the liquid-filled spaces.
5. Vacuum drying or vacuum vapor drying removes the remaining medium at reduced temperature.

The step order matters. If vacuum is applied after cleaning, air remains trapped during cavitation. If vacuum is released before rinsing, the part can re-entrain gas. Systems that combine vacuum with basket rotation give the most repeatable results on parts with hidden volumes.

The mechanical action behind this behavior begins with bubble formation and collapse. <What Is Ultrasonic Cavitation Effect?> covers how cavitation intensity changes with frequency, gas content, and temperature, and why vapor-filled cavities behave differently from air-blocked cavities.

Why Trapped Air Weakens Standard Cavitation

Trapped air acts as a cushion. Ultrasonic energy compresses the gas pocket instead of creating violent bubble collapse on the metal surface. The result is weak scrubbing and uneven cleaning. That condition is hardest to detect because the visible surfaces may look acceptable while the blind hole stays contaminated.

How Vacuum Drying Avoids Water Spots

Under vacuum, water and low-boiling solvents convert to vapor below their atmospheric boiling points. Residual liquid inside threads, cross holes, and tight clearances boils away instead of evaporating slowly from the surface. This leaves fewer mineral traces, less spotting, and more uniform dryness. For aqueous systems, the final DI water conductivity still sets the cleanliness ceiling because vacuum cannot remove dissolved solids that were never rinsed away.

Solvent and Rinse Chemistry Set the Cleanliness Ceiling

Vacuum is a physical tool. It does not dissolve oil, remove oxide, or neutralize particles by itself. The cleaning medium decides which contaminants leave the part. In practice, the choice falls into three main groups:

Hydrocarbon systems suit parts carrying heavy forming or cutting oil. The solvent dissolves the oil, penetrates tight clearances under vacuum, and can be distilled for recovery. Modified alcohol systems dry at lower temperature and can remove some polar contamination, but the lower flash point means the safety system must address vapor concentration. Aqueous vacuum ultrasonic systems work well when particles and water-soluble coolants dominate but need a very clean final rinse to avoid leaving dissolved solids behind.

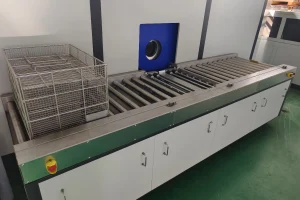

Our hydrocarbon solvent ultrasonic vacuum cleaners operate with a 670 × 480 × 400 mm basket capacity up to 200 kg per batch. The two-stage cycle runs in 12 to 15 minutes and the single-stage cycle in 8 to 9 minutes. Under normal operation, cleaning fluid consumption stays at or below 200 liters per month. Those numbers give buyers a reference point: vacuum capability should improve penetration and drying, but it should not multiply solvent loss if the recovery loop and vapor handling are designed correctly.

Recovery economics determine whether a vacuum solvent system stays cost-effective after installation. <Implement Solvent Recovery Systems: A Factory Efficiency Guide> covers how distillation-based recovery reduces replacement solvent, isolates oil and water, and keeps fluid consumption stable across shifts.

If your parts carry stamping oil plus fine metal powder, the solvent and filtration choice needs a lab trial before you commit to tank sizing. Send the contaminant description and required residual level to [email protected] and we will confirm whether hydrocarbon, modified alcohol, or aqueous vacuum cleaning is the safer baseline for your part family.

Part Geometry and Basket Design Drive Drying Choices

The greatest risk in a vacuum ultrasonic system is not the ultrasonic generator. It is the basket. Parts with blind holes, counterbores, or stacked surfaces hold liquid in places a general wash cycle never reaches. If the basket does not orient those features for drainage, vacuum drying will still leave trapped liquid at the lowest point.

Basket design has to balance exposure and protection. A round rotating basket works well for parts with blind holes because it changes orientation during cleaning and drying. A square basket or sheet-like fixture may be better for plate-type parts that cannot collide. The contact points matter as much as the open area. Any surface covered by a fixture is shielded from cavitation and from drying flow.

For coating parts with deep internal features, we specify final rinsing with ultrapure water at conductivity of 0.06 µS/cm or lower. Vacuum drying then removes the remaining liquid without leaving a mineral film. In those applications, the sequence matters: hydrojet spray, ultrasonic cleaning, multi-stage ultrapure water rinsing, then air knife, hot air, or vacuum drying depending on part geometry.

When the same line must handle several part numbers, the basket becomes a process variable rather than a simple holder. A fixture that works for one orientation may fail on a mirrored version. We review the part drawing and the cleaning spec together before selecting basket material and rotation.

Fixture design can make or break an otherwise correct process. <Industrial Cleaning Baskets: Why They Matter for Your Parts Washing Efficiency> covers how drainage, contact points, and material selection affect cleaning, rinsing, and drying uniformity.

Confirm These Specifications Before Buying a Vacuum Ultrasonic System

Vacuum ultrasonic cleaning only pays back when the chamber, solvent handling, basket motion, and drying sequence are matched to the part. A system that works for a 40 mm connector body may be wrong for a 400 mm transmission housing. Before committing to a line, four parameters need definition: part volume and blind-hole depth, contamination mix, required cleanliness standard, and acceptable cycle time. That decision gets easier when you compare actual load capacity, solvent consumption, and drying energy against the part family instead of evaluating catalog photos.

Send your part drawing, contaminant description, and target cleanliness limit to [email protected] or call +86 17768507147. The GTKCLEAN review includes tank configuration, solvent compatibility, vacuum level, basket rotation, and drying method before you finalize the specification.

Buyers Often Ask These Questions About Vacuum Ultrasonic Cleaning

What cleanliness level can vacuum ultrasonic cleaning achieve?

Vacuum ultrasonic cleaning alone does not define a cleanliness class on an ISO 16232 or VDA 19 scale. The validated process does. A vacuum station can improve a system's ability to reach a required particle or residue limit on parts with blind features, but it cannot compensate for weak detergent, poor rinsing, or a basket that shields surfaces. Buyers should state the target in measurable terms, such as maximum particle count per size class or residual oil mass, then test the complete process rather than selecting equipment on vacuum depth alone.

Does vacuum ultrasonic cleaning always require solvent?

A common assumption is that vacuum cleaning only works with solvents. That is not correct. Vacuum is used in both solvent and aqueous systems. Solvent systems pair vacuum with vapor drying and distillation; aqueous systems pair vacuum with DI water rinsing and reduced-temperature drying. The part contamination and the downstream process decide the route. If the next operation is coating or welding, solvent residue may be as serious as water spots, and a hydrocarbon or modified alcohol vacuum system often fits better.

When should a buyer choose vacuum ultrasonic over standard multi-tank ultrasonic?

It depends on part geometry and the reject cause. If blind holes, deep cross holes, micro bores, or internal threads are holding contamination, vacuum is worth evaluating. If parts are mostly external, standard multi-tank ultrasonic is usually lower in capital and cycle time. A useful trigger is field evidence: residues found only inside a specific hole after rinsing point to trapped air, not insufficient cleaning time.

How much does vacuum add to cycle time?

The more useful comparison is total part output, not isolated station time. A sealed-chamber vacuum system adds pump-down and vacuum drying time. In a typical hydrocarbon vacuum ultrasonic cleaner, a two-stage cycle runs 12 to 15 minutes. The total station time is longer than a simple open-tank ultrasonic rinse, but the comparison has to include rework, tray re-cleaning, and coating or assembly fall-out. On blind-hole parts, the longer cycle is usually cheaper than handling rejects downstream.

Can an existing ultrasonic system be retrofitted with vacuum?

In our experience, most open-top ultrasonic tanks are poor retrofit candidates because the chamber, sealing, solvent handling, and vapor recovery are integrated safety systems. A true vacuum ultrasonic machine is built around a pressure envelope and a gas-tight basket transfer sequence. It is usually better to replace the station or add a dedicated vacuum cleaning cell than to modify an existing tank that was never designed for pressure differentials. If your current line leaves specific internal features contaminated, share the part drawing and current process with us at [email protected] and we can identify whether a vacuum stage is justified.
