Cleaning parts between manufacturing operations is less about appearance than about handing a stable surface to the next cell. Machining coolant, stamping oil, heat treatment scale, or dust from staging changes the outcome of coating, welding, assembly, or leak testing. The method should match the specific contaminant left by the previous operation and the surface condition required by the next one, not some factory-wide standard. In most interstage applications we handle, teams get better results by treating cleaning as a process control step with measurable residues, defined drying, and consistent part handling.

Why Cleaning Parts Between Manufacturing Operations Is a Process Control Step
Interstage cleaning is usually evaluated by how much scum it removes, but the real measure is what it passes downstream. A part can look bright and still carry a thin anti-rust film that prevents coating adhesion or a moisture pocket that disturbs a leak test. The cleaning step therefore belongs inside the same process control logic as gauging or torque checks, with a defined residue limit, a defined drying state, and a cycle that repeats with the rest of the line.
Three conditions decide the cleaning requirement. The first is the previous operation's contaminant: coolant, chips, stamping compound, quench oil, or scale. The second is the next operation's sensitivity: coatings and welds react to oils, precision assembly reacts to particles, and packaging reacts to moisture. The third is the dwell between stations, because parts that sit open in the shop will collect dust even if the washer did its job.
We have traced coating pinholes to stamping oil that remained as a nearly invisible film after the washing line removed the bulk contaminant. The final rinse had left a thin anti-rust layer that only became visible under vacuum outgassing. The fix was not a stronger chemical; it was a different rinse sequence and a final drying stage that matched the coater's surface energy requirement.
A wash step that removes visible oil is not automatically ready for coating. <Ultrasonic Cleaning Process: A Step by Step Technical Guide> covers how cavitation, rinsing, and drying interact and where residual contamination hides.
Which Contaminants Appear at Each Handoff
Cleaning parts between operations starts with the handoff matrix. The same washer cannot treat a machined blank and a stamped shell identically unless both leave the same type of residue. The table below groups the most common handoff risks and the cleaning priority at each point.
| Upstream Operation | Typical Contaminant | Main Risk if Carried Forward | Cleaning Priority |
|---|---|---|---|
| Machining or CNC | Cutting fluid, chips, burrs | Blocked coating adhesion, assembly fit issues | Remove bulk chips, degrease, DI rinse |
| Stamping or forming | Drawing oil, anti-rust film | Weld porosity, painting defects | Remove oily film, dry completely |
| Heat treatment | Quench oil, scale, carbon | Inspection difficulty, dimensional check issues | Solvent or alkaline clean, descale if needed |
| Deburring or polishing | Abrasive dust, compounds | Contamination trapped in recesses | Rinse, ultrasonic cavitation |
| Pre-coating | Fingerprints, particles, moisture | Pinholes, poor adhesion | Ultrapure rinse, hot air or vacuum drying |
| Assembly or packaging | Dust, fibers, fingerprints | Premature wear, corrosion in storage | Controlled drying, clean packaging |

How to Select the Cleaning Method for Interstage Parts
Once the contaminant and the next operation's limit are clear, the method can be selected on solubility, part geometry, and drying.
Water-based systems for coolant and chips
Water-based systems are the default for water soluble coolants and loose chips. The sequence normally runs from high pressure spray to remove bulk chips, ultrasonic cleaning to reach cavities, then reverse osmosis or deionized water rinse to prevent mineral deposits, followed by drying. GTKCLEAN's pre-coating line uses final ultrapure water with conductivity at or below 0.06 µS/cm for this reason: any dissolved mineral left on a coating surface becomes a spot after drying.
Solvent systems for oil films and blind holes
Heavier stamping oils, waxes, and anti-rust films may need solvent based cleaning. Hydrocarbon or modified alcohol systems combine ultrasonic cavitation, vapor cleaning, and vacuum drying in one enclosure. On a single station vacuum cleaner rated for loads up to 200 kg, two stage cleaning runs 12 to 15 minutes, single stage cycles are 8 to 9 minutes, and solvent consumption stays at or below 200 liters per month because the distillation circuit recovers clean solvent from the rinse.
Drying states that protect the next operation
Drying is not an accessory. Air knives remove surface water before hot air, while vacuum drying pulls water from blind holes and dense feature areas. The end state should be written into the specification: visibly dry, water-free in blind holes, or moisture level below the next process limit. A coater may accept air knife drying for flat parts but still require vacuum for hollow components because trapped water blows out during pumpdown.
Choosing a method only works when the supporting components match it. <Ultrasonic Cleaning System Components Explained> covers how generator, transducers, filtration, and tank design interact with process performance.
If your parts move from machining to coating or welding, confirm the final particle count and drying state before you lock the line configuration. Send your part number and the current contaminant to [email protected] or call +86 17768507147 and we will match the cleaning method to the next operation.
What Changes When You Automate Interstage Parts Cleaning
Automation does not just shrink labor. It holds the cleaning cycle constant from part to part, which is what the next operation actually needs. A manually loaded washer can deliver good results when the operator controls time, baskets, and spray position. It cannot easily prove that every part saw the identical wash, rinse, and dry routine across two shifts.
For high volume conveyor lines, GTKCLEAN's fastener tunnel cleaner removes drawing oil, cutting fluid, and quenching oil in one pass. The conveyor runs 0.5 to 1 meter per minute, produces at least 2 tons per hour, and uses an oil water separation system that removes more than 98 percent of surface oil from the wash fluid. That consistency matters more than raw cycle speed because the downstream plating or assembly cell sees a stable surface condition.

Where manual cleaning still fits
Manual ultrasonic cleaning still fits low volume work, small cells, or short runs where the part mix changes daily. The operator can inspect a part after wash and decide whether a blind hole needs another pass. The limitation is repeatability: immersion time, basket loading, and spray angle drift with each operator change. If the next operation demands documented cleanliness, manual cleaning adds inspection burden.

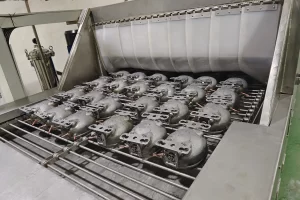

Where conveyor automation becomes the default
Conveyor automation becomes the default when line flow exceeds what an operator can handle or when every part must pass the same nozzle pattern, rinse coverage, and drying time. Inline systems work best for continuous production with similar part families. Batch automated systems fit higher cleanliness requirements and heavier parts, with rotary basket or multi tank designs controlling the transfer sequence.
Manual cleaning still works for low volume, but consistency drifts across shifts. <Productivity Comparison: Manual Versus Automated Ultrasonic Cleaners> covers the throughput and repeatability split that determines when automation pays for itself.
How to Move From an Interstage Cleaning Problem to a Quoted System
Most manufacturing teams do not need a standard machine; they need a line matched to part geometry, contaminant, throughput, and the next operation's cleanliness limit. The fastest next step is to put those constraints into an equipment specification instead of comparing catalog models against each other. We start with the part drawing or sample, the contaminant type, the required final cleanliness, and the daily volume.
Before you compare equipment models, the selection logic matters more than the feature list. <Choosing the Right Ultrasonic Cleaning System for Your Factory> covers how to evaluate tank configuration, drying, and line integration against production constraints.
Send your part number, part drawing, daily volume, and the current contaminant to [email protected] or call +86 17768507147. We will confirm the process sequence, tank configuration, drying method, and likely footprint before you commit to layout changes.
Questions Manufacturing Teams Ask About Interstage Parts Cleaning
How dry do parts need to be before the next operation?
Parts do not always have to be visibly dry, but they do need the drying state the next operation requires. For coating, any surface moisture creates pinholes and adhesion loss. For assembly, trapped water in blind holes leads to corrosion or bearing damage. For leak testing, residual water produces false readings. We usually specify hot air drying for open surfaces, vacuum drying for blind holes or dense parts, and air knife blow-off before hot air to remove bulk water. The correct dryer depends on part geometry, not just cycle time.
Can one cleaning system handle parts from different cells?
It depends on whether the contaminants and cleanliness limits overlap. One multi-stage system can often handle several part families if the contaminant is similar, such as machining oil and chips across CNC cells. When one cell introduces stamping compound or heat treatment scale, the process may need an additional stage or a different chemistry. Batching dissimilar parts also creates cross-contamination risks if they are cleaned together. The safer approach is to group parts by contaminant family and final specification, then confirm loading positions, wash time, and drying settings for each group.
How do we know whether to use aqueous or solvent cleaning?
A common assumption is that aqueous cleaning is always the lower-cost option, but that skips the drying and wastewater burden. Aqueous systems work well for water-soluble coolants and particulate removal, while solvent systems handle heavy oils, waxes, and blind-hole residues with faster drying. The decision should follow solubility, part geometry, and final cleanliness limit. If the part traps water in deep recesses, solvent or vacuum drying changes the picture. We compare both against the same residue type before choosing a chemistry.
What is a realistic way to validate interstage cleaning without slowing production?
In lines we have supported, the most practical approach is a periodic witness coupon or a documented sample check during normal production, not a full lab analysis on every lot. Pick a known critical surface, inspect the residue visually or with a particle count, and record the cleaning parameters from that cycle. If the equipment tracks temperature, conductivity, conveyor speed, and cycle time, the process record supports consistency and supply chain acceptance. Occasional third-party testing confirms the method, while daily checks keep it within control. Share your current contaminant, cleanliness target, and daily volume and we will confirm the validation package that fits the line.
